Tank Gauge BJLM-80H with SF dispalcer

A traditional type of servo level gauge. Provides extremely level measurement. Working with separate Multi-Point Thermometer to provide custody transfer based on volume.


• Excellent in Accuracy
• Proven Reliability
• Easy Installation
• Simple Commissioning
Share:
Tank Gauge BJLM-80H with SF dispalcer


BJLM-80H with SF Displacer is traditional type of servo level gauge. There is no any sensor inside of SF dispalcer comparing with MF/TF dispalcer. It provides level measurement only as the traditional servo gauge does.  Temperature measurement will be provided by another separate Multi-Point Thermometer. It provide basic measurement and performs custody transfer based on volume.

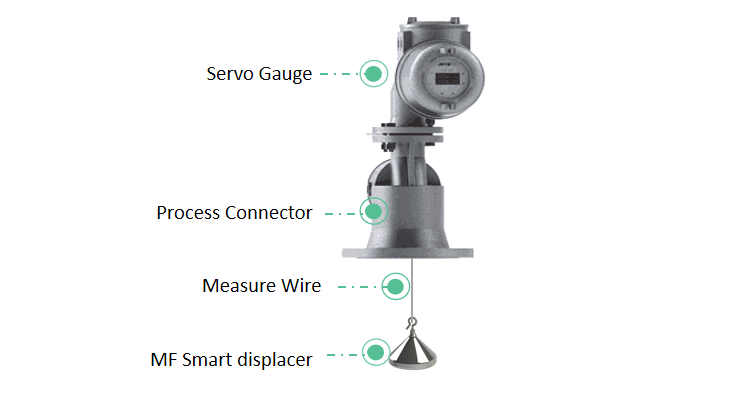

Structure




Features

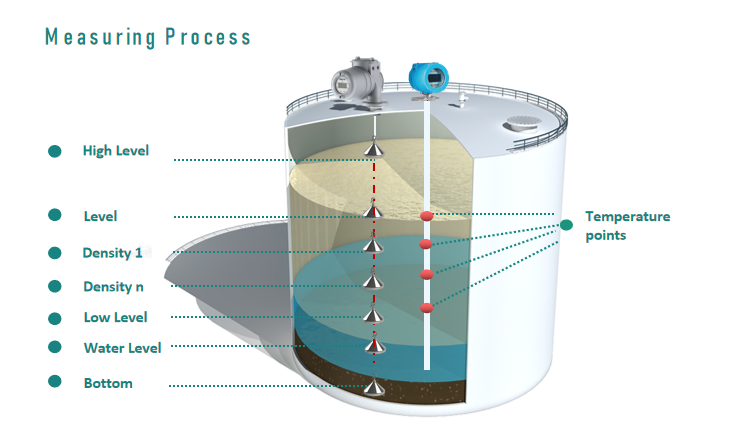

Providing extremely accurate level measurement as an traditional servo type of level gauge. By working with BJZT multi-point thermometer, it can provide level, temperature output and providing calculation of volume, VCF.








  • Providing extremely accurate level measurement as an traditional servo type of level gauge.
  • By working with BJZT multi-point thermometer, it can provide level, temperature output and providing calculation of volume, VCF.
  • Perform online temperature measurement by Multi-point thermometer ;
  • Availible for rough density can be calculated by buoyancy principle;
  • Low maintenance cost and long life cycle saving expenses for the owner;



IEC EX,  CNEX, GOST (Russia) ; UL-BR(Brazil)  ;
OIML, Metrology Type Approval (Russia);  Metrology Type Approval (Indonesia);
