Truck-mounted level probe - TL-I
Used for the level measurement on a tank-truck, and is integrated with the function of overfill alarming.
• Simple installation;
• High reliability;
• API standard interface ready for International uses.
Share:
Functions:

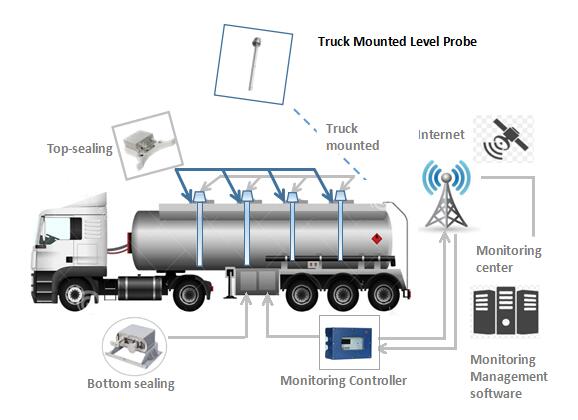

∗ This level probe is mainly used for the level measurement on a tank-truck, and is integrated with the function of overfill alarming.
∗ With this probe being installed in the tank, you no longer need to open the manhole to check the level in the tank, and, as a result,
∗ The oil vaporization is kept much less than before.
♦ Simple installation;
♦ High reliability;
♦ API standard interface ready for International uses.
| Item | Spec |
| Voltage | 12V/DC |
| Current | <8 mA |
| Measurement Temperature Range | -40℃ ~ +80℃ |
| Level Measurement Range | 0-494 mm |
| Level Measure Accuracy | 1mm |
| Communication | RS 485 ModBus |
| Working Temperature | -40℃ ~ +80℃ |
| Storage Temperature | -50℃ ~ +100℃ |
| Protection Class | IP65 |
| Explosion Proof Rating | Ex ia IIB T4 Ga |
