Flow Meter
* Highaccuracy of ≤±0.2%
* Repeatability error ＜0.02%
* Range ration ≥ 10:1
* Compac design, easy for installation
* Applied to wide range viscosity of fluid
* Linearity of flow measurement
LS Flow meter is featured with simple structure, light weight, high precision, good repeatability, quick response, wide measuring range, good linearity and repeatability. It can adapt to wide range of pressure and temperature. It is adaptable to wide range of density changes and viscosity changes

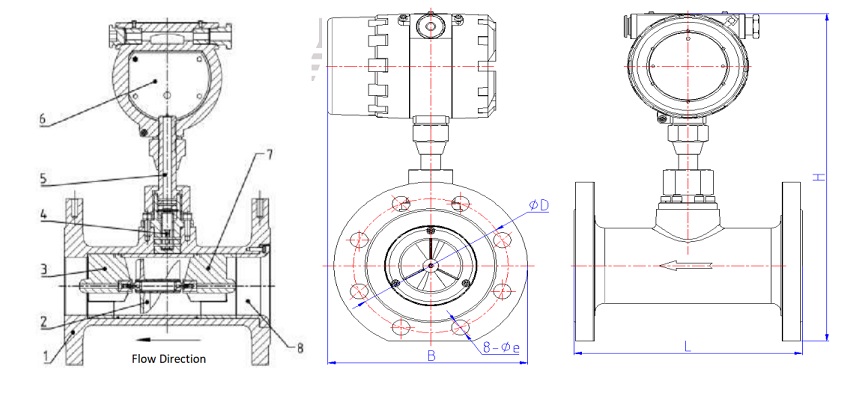

1-Flow Meter Shell 2- Turbine 3-Rear Duct 4-Magnetic Head 5- Guide Rod 6- Junction Box 7- Front Duct 8- Duct Pressing Bush
Installation Dimension:
|
Nominal Diameter |
L (mm) |
H(mm) |
B(mm) |
D(mm) |
E (mm) |
Weight |
|
80 |
236 |
319.5 |
206.5 |
160 |
18 |
18 |
|
100 |
270 |
412 |
220 |
180 |
18 |
22 |
♦ High accuracy of ≤±0.2%
♦ repeatability error ＜0.02%
♦ Range ration ≥ 10:1
♦ Compac design, easy for installation
♦ Applied to wide range viscosity of fluid due to the rotor structure and its design, minimized the effect by the viscosity of the fluid;
♦ The rotor special material and its structure, ensuring the accuracy and linearity of flow measurement;
♦ Accuracy is not effected by the elements such as pressure and density change;
♦ Measuring cylinder is easy to be taken out and no need to re-calibration for the replacement, making the maintenance easy and reducing its downtime.
♦ With pulse frequency signal output, it is suitable for totalized metering and computer connection, and it has strong anti-interference ability;
♦ It can sustain power supply built-in battery for more than 6 years duration without external power supply;
♦ Technical Spec:
♦ Accuracy Class：0.15，0.2，0.5；
♦ Nominal pressure：see in the sizing table；
♦ Media viscosity：（0.2～800）cSt；
♦ Media Temperature：（-40～150）℃；
♦ Ambient Temperature：（-40～70）℃；
♦ Explosion Rating：Exd IIC T5 Gb；
♦ IP class ：IP65；
♦ Communication：RS485（ModBus）；
♦ Flow pulse output；
♦ Power：24V/DC；
♦ Internal battery：ER26500，3.6V/DC；
♦ Power：＜1W；
♦ Electrical entry：2×M20×1.5.
